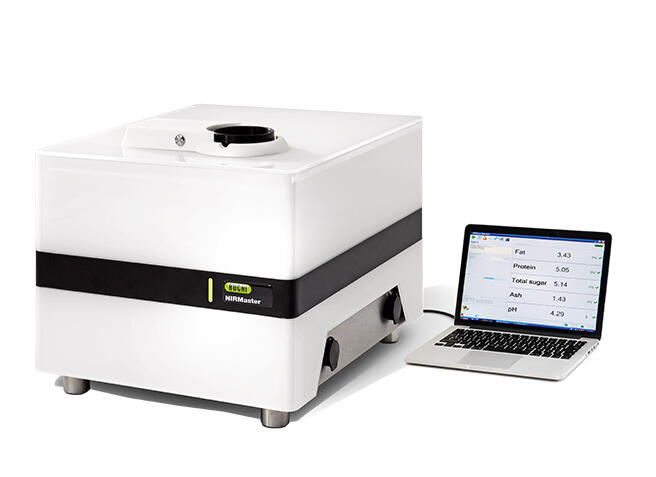

NIRMaster™ Essential

NIRMaster

Benefits

Best results

Highly reproducible results with polarization FT-NIR technology
Precise measurement of multiple parameters simultaneously
Exact data through top wavelength precision guaranteed by the internal laser system

Ease of use

Efficient and time-saving quick-start calibrations
Compatible with standard industry monitor and keyboard
Certified dust and splash water protection (IP54)
Easy-clean hygienic design

Reliable

Maximum reliability due to vibration proof FT polarization interferometer
Permanent performance verification through frequent internal standard checks
Continuous operation with twin-lamp safeguard

Features

The BUCHI polarization interferometer

BUCHI has adapted the successful quartz polarization interferometer by using crystals with a very high refractive index. This leads to optimum resolution and a compact design maintaining the advantage of insensitivity to mechanical disturbances. The reason for the superior performance of this interferometer in rough environments is the difference of spatial movements and the optical path shifts for the two light beams in a birefringent crystal of variable thickness. Whereas in a Michelson type interferometer mechanical distortions directly affect the interference, such effects are reduced by a factor of 10 to 20 in a crystal interferometer.

Easy-clean design increases food safety day by day

The hygienic easy-clean design and high ingress protection (IP) support your routine work in harsh environments. The NIRMaster™ Essential is available in food-grade PMMA housing offering IP54 protection.

The twin lamp module

BUCHI has set a new standard in terms of the availability of an NIR spectrometer.Our NIR spectrometers are equipped with a twin lamp module, which will automatically switch to a second integrated lamp in the event of a failure of the primary source. This minimizes the risk of an instrument failure, and sufficient time is left to order a replacement lamp. Meanwhile you can continue your measurements without further intervention.

Additional features

NIR Applications Finder

Quickly find relevant precalibration details and expected performance for your application using the on-line NIR applications finder.

Do I need to calibrate my BUCHI FT-NIR spectrometer?

There is no need for instrument calibration. The term “calibration” is used in NIR with two different meanings:

Unlike other NIR instruments, the BUCHI instrument does not need to be calibrated since the accuracy is ensured by internal standards and permanent laser-aided alignment.
In NIR spectroscopy a calibration model is generally required to interpret sample data. This model needs to be developed on setup of the application. BUCHI’s NIRCal software makes it straight forward to develop robust and reliable calibrations by correlating NIR data with reference analytics.

Can I work with a BUCHI spectrometer in any environment?

Yes, the NIRFlex N-500 is a benchtop spectrometer mostly for laboratory use. The NIRMaster™ Essential provides high ingress protection and is therewith ideal for benchtop analysis at production sites.
