ANTI-STOKES LASER VIEWING ENCLOSURE FOR THE EXAMINATION OF FINGERPRINTS

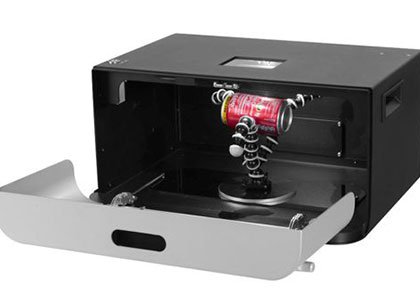

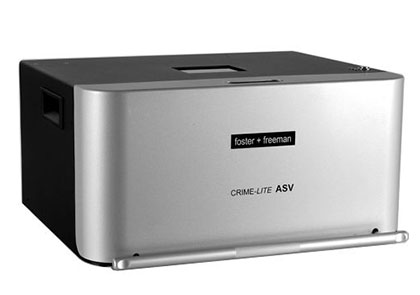

The Crime-lite ASV is a bench-top viewing enclosure for the stimulation of infrared activated anti-Stokes fingerprint dusting powders.

Anti-Stokes powders absorb invisible infrared radiation and re-emit the energy at visible wavelengths, a process that is the reverse of standard fluorescence.

Excellent results can be obtained with fingerprints on 'busy' multicolored backgrounds and on backgrounds which fluoresce at similar wavelengths to standard fingerprint treatments.

Features

  • Bright visualization of fingerprints under infrared illumination
  • Minimise the impact of background fluorescence
  • Safe Class 1 laser viewing enclosure
Enquiry

Application

Crime-lite ASV Applications

A SAFE VIEWING ENCLOSURE FOR THE VISUALISATION OF ANTI-STOKES FINGERPRINT POWDERS


Latent fingerprints, invisible under white light, appear to glow brightly in the visible spectrum when dusted with anti-Stokes (up-convertor) powder and illuminated under an intense infrared light.

Visualisation of fingerprints using anti-Stokes powders is of particular use in situations where background fluorescence overwhelms the fluorescence produced using alternative fingerprint dyes/stains, on exhibits that cannot be 'dipped' into wet treatments such as BY-40, and on metal exhibits (this is due to the magnetic properties of anti-Stokes powders).



Typical exhibits that benefit from ASV development include:
  • Paper and card including banknotes, passports, magazines etc.
  • Smooth metal surfaces including drinks cans
  • Electronics such as mobile phones
  • Firearms, that require test firing following treatment

Specifications

Crime-lite ASV Specifications

System Specifications

The Crime-lite ASV is a bench mounted laser viewing enclosure for the stimulation of anti-Stokes fingerprint dusting powders (available seperately).

  • Safety-interlocked Class 1 laser viewing enclosure
  • 2 x 6 Watt lasers
  • 2 x White LED interior illumination aids sample allignment
  • Laser illumination area of 45mm x 60mm
  • Laser blocking fingerprint viwing/imaging window
  • Enclosure dimensions: 505 x 400 x 245mm
Available Accessories
  • Anti-Stokes magnetic fingerprint powder, 50g
  • Magnetic applicator
