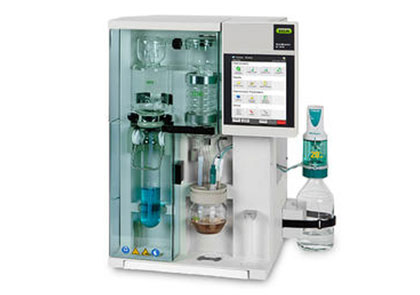

KjelMaster K-375
KjelMaster K-375

KjelMaster K-375

Free choice of methods at perfect usability

We provide solutions for both potentiometric and colorimetric titrations. The KjelMaster K-375 meets the highest demands in usability, automation, user administration and sophisticated data management.

Proven

  • Shortest time-to-result due to well synchronized process steps
  • Upgrade onsite for highest sample loads by connecting the KjelSampler
  • Fully automated workflow for high sample loads
  • Automatic data exchange with complementary peripherals
Enquiry

Options




Feed - Kjeldahl

Protein, Non-Protein Nitrogen (NPN)






Food - KjelMaster

Protein, Non-Protein Nitrogen (NPN), casein (NCN), Total Volatile Basic Nitrogen (TVBN), formaldehyde






Environmental Analysis - Distillation

Ammonia, Total Kjeldahl Nitrogen (TKN), phenol, formaldehyde, nitrate, nitrite (Devarda)




Pharmaceutical / Cosmetics - Distillation

Organic nitrogen, ammonia, urea, formaldehyde




Beverage - KjelMaster

Protein, alcohol, volatile acids, diacetyl




Chemicals / Agricultural - KjelMaster

Ammonia, nitrate, nitrite (Devarda), total nitrogen

Benefits

Comprehensively safe

  • Compliant and flexible plug-and-measure titration concept (colorimetric / potentiometric)
  • Safe operation, user protection and guided routine operation
  • Different access levels of authorization according to GLP requirements
  • Reproducible results with the smart distillation mode “IntelliDist”
  • Data security supported by intelligent software

Safe and convenient

  • Intuitive operation via the large graphical color touch screen (8.4”)
  • Simple LIMS integration and traceable data recording
  • No errors in routine operations by the sophisticated KjelLink PC software
  • Optimal and stable working conditions by self-adjusting cooling water control Proven

Technica Data

Dimensions (WxHxD)  458 x 670 x 431 mm
Screen 8.4 inch color touch
Memory >100’000 results
Minimal titrator volume 2 μl / step
Language versions  DE, EN, FR, IT, ES, JA, CN, RU, PL, KO
Pumps NaOH, H3BO3, H2
Measuring range  0.02 – 200 mg N
Reproducibility (RSD)  <1 %
Recovery >99.5 % (1 – 200 mg N)

Options




Glass splash protector

With its extensive know-how BUCHI provides state-of-the-art glass parts like the splash protector. The whole distillation process is visible for easy method development and process monitoring.




Plastic splash protector

This splash protector is made of glass fiber reinforced polypropylene. It is the choice for high throughput analysis due to its long lifetime




Potentiometric electrode

Measuring the pH is an accurate method to detect the endpoint of a titration. BUCHI’s gel electrode is easy to handle, maintenance free and suitable for routine use.




Colorimetric sensor

The outstanding feature of the colorimetric sensor is its long lifetime. It does not require calibration and is recommended for applications that require detecting the color change of an indicator at the titration endpoint.




KjelSampler K-376

Compact sampler with 24 sample positions to fully automate the Kjeldahl analysis with the KjelMaster K-375. Transferring the sample with steam overpressure to the distillation unit is unique and offers outstanding money and time saving benefits.




KjelSampler K-377

Compact sampler with 48 sample positions to fully automate the Kjeldahl analysis with the KjelMaster K-375. The sample transfer with steam overpressure,as well as the independent rack trays for continuous sample loading are unique time saving benefits.




KjelLink PC software

The intelligent PC software KjelLink save time and costs.

Technical Resources

Technical data sheet en (801 K)

KjelMaster K-375 / KjelSampler K-376/377 Technical Data Sheet

VIEW

Product Brochure

KjelMaster K-375 / KjelSampler K-376/377 Product Brochure

VIEW

Digestion and Distillation Solutions Brochure

Brochure

VIEW

Contact Us at +9714 2152799

We can help you with a solution tailor to your specific need.
