Soxhlet Extraction system E-500
Soxhlet Extraction system E-500

Soxhlet Extraction system E-500

Quick and Compliant

The FatExtractor E-500 is designed for quick and compliant fat extraction. Gain the flexibility to readily adapt your FatExtractor E-500 to changing needs with the interchangeable glass assembly and execute extractions according to Soxhlet, Randall or Twisselmann.

What are the main advantages of the SOX unit?

  • The E-500 SOX / LSV guarantee an original, automated and accelerated Soxhlet extraction.
  • Best solvent recovery rates thanks to solvent tank with condenser.

Is it possible to install the unit outside of a fume hood?

Yes, only when working with D-Ether (volatility) or chloroform (toxicity), working in the fume hood is necessary.

Enquiry

Benefits

True Soxhlet

  • Soxhlet extraction is exhaustive and rugged but is still the mostly used and regulatorily demanded method for many sample matrices
  • Analytical risks or time-consuming validation of other extraction methods deviating from the standard do not exist
  • Used as reference method for NIR calibrations

Soxhlet extraction made faster

  • Reduced cycle times are the result using of high-end components such as optical sensor, powerful heating and optimized glass assembly
  • Automated Soxhlet process reaches an unmatched speed compared to traditional glassware assemblies
  • Reduced time-to-result and unprecedent sample throughput per day

Interchange between glass assemblies (SOX-HE-ECE)

  • Easy change of glass assembly that is compliant with Soxhlet, Randall (HE) and Twisselmann (ECE)
  • No limitation to one extraction method, but adaptable to needs and changing demands
  • Profit from unrivalled quick extraction times and lowest solvent consumption of HE

Features




Interchangeable glass assembly

By simply changing the glass assembly, the FatExtractor E-500 complies with standard methods such as Soxhlet, Hot Extraction (HE) or Twisselmann (ECE)

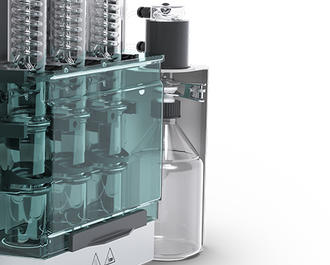

Re-use your solvent

The freshly distilled solvent is collected in an easily accessible and detach­able bottle. Execute an environmental friendly extraction process and save money. The innovative flange z-seal system guarantees minimal solvent emission.






Individual level sensors

Gain highest turnaround of Soxhlet cycles by adjusting the level detection sensor to the sample volume. Significantly increase the extraction efficiency and your sample throughput per day.






Adapt to sample size

The main glass parts are expanded up to 60 %, as required for direct extraction of low fat samples.




Platform




FatExtractor E-500 SOX / LSV

The FatExtractor E-500 SOX / E-500 SOX LSV is designed for compliant fat extraction according to the Soxhlet method. The fully automated Soxhlet process reaches an unmatched speed. The reduced cycle times are the result using of high-end components such as optical sensor, powerful heating and optimized glass assembly. Use the LSV (Large sample volume) version for direct extraction of low fat samples.






FatExtractor E-500 HE

The FatExtractor E-500 HE is designed for fat extraction according to the Hot extraction method (= Randall). Profit from unrivalled quick extraction times and lowest solvent consumption.






FatExtractor E-500 ECE

The FatExtractor E-500 ECE is designed for fat extraction according to the Economic continuous extraction (= Twisselmann). The automated continuous extraction method ensures simple method selection and easy operation. High extraction efficiency with low variation combined with reduced solvent consumption guarantee cost savings.



Dimension (W × D × H) 638 × 595 × 613 mm
Weight net 42 kg
Power consumption 1300 W
Connection voltage 100 – 240 V (+/- 10 % VAC)
Frequency 50 / 60 Hz
Solvent recovery > 90 %
Water consumption max. 1.7 L / min

Applications




Extraction Food

Crude or total fat, lipids (after hydrolysis) / Contaminants: food, food contact materials, processing / Residues: pesticides, veterinary drugs / Flavors and odors






Extraction Feed

Crude fat, total fat
