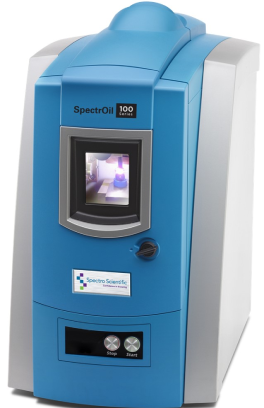

SpectrOil 100 Series

SpectrOil RDE-OES consists of three main components. These components are:

Excitation Source - introduces energy to the sample.This includes a high voltage AC source that applies voltage across a small gap formed by a purified graphite rod and disc, with the disc rotating and picking up oil from the sample holder under it.

Optical System - separates and resolves the resulting emission from that excitation into its component wavelengths.

Readout System - detects and measures the light that has been separated into its component wavelengths by the optical system and presents this information to the operator in a usable fashion.

A specific calibration program is applied to raw spectrum which eliminates the matrix effect, so results are compliant to ASTM standards. Then user only needs to select the calibration profile for specific fluids. So, switching from oil to fuel to coolant or water only takes seconds, not hours like ICP and other instruments.

Calibration programs

Calibration	Description	Standards
Lubricating oil (Commercial)	Detect and quantify elemental wear and additives in lubricants. Conforms to ASTM-D6595. Default 24 elements, up to 31 elements	CS-75-500	Base oil
		CS-24-100-200G	24 elements, 100 ppm
		SMA-900-200G	5 elements, 900 ppm
Fuel (light and heavy fuel)	Detect quality and contamination of petrochemicals from crude through the final blended light fuels. Conforms to ASTM D-6728. It includes both light and heavy fuel calibration programs	CS-75-500	Base Oil
		CS-GT15-10	10ppm for light fuel
		CS-GT15-100	100ppm for heavy fuel
Low Detection (LD) Diesel	Special calibration for #2 Diesel with low limits of detection for Alkaline metals and V. Specifically LOD of V is down to 0.1ppm, critical to meet turbine OEM specification for diesel fuel quality control	CS-HP-100	High purity base oil
		CS-GT15-10	10ppm
		CS-GT4-1-200G	1ppm for Li, Na, K,V
		600-00111	0.2 ppm for V
Coolant/Glycol	Analyze in-service coolant (water glycol mix) for additives and contamination	JDIW	DI water
Coolant/Glycol		SIGLYCOLSTD-500	Diluted glycol standard
Process water	Measuring contamination in a variety of applications like power plant cooling water and turbine wash-down water.	STE006 KIT	DI water and 5ppm standard
JOAP Army	JOAP Army calibration with 20 elements. Results correlate to SpectrOil MNW	D19-0	Base Oil
		D12-100	12 elements, 100ppm
		D3-100	Zn, Mo, B, 100ppm
		CS-24-100-200G	24 elements, 10ppm
		SMA-900-200G	5 elements, 900ppm

Consumables used by calibration programs

To ensure accurate and stable measurement results, different consumables are used for different calibration programs. Only Spectro Scientific certified consumables are qualified to meet performance specifications.

Calibration Programs	Disc	Rod	Sample Holder (Cup)
Lubricant, Coolant, Water	M97008	M97009	P-10524 high temperature sample cup (black)
Light, heavy fuel, LD fuel	M97008	M97009	P-10524 high temperature sample cup (black) M90204 sample cover for low flash point fuels

Product models and default calibration program

Model	Default Calibration	Number of Elements	Additional Calibration
110E	Lubricant	15	Not available
120C	Lubricant	24, optional to 31	Fuel, coolant, water, JOAP
120F	Light and heavy Fuel	15	LD Fuel, lubricant, coolant, water, JOAP

Product models and default calibration ranges

Element	Lubricant 15 Elements	Lubricant 24 Elements	Lubricant Extended	Light Fuel	Heavy Fuel	LD Fuel	Glycol/ Coolant	Water
Ag	0 - 900	0 - 900
Al	0 - 900	0 - 900		0 - 50	0 - 500	0 - 100	0 - 50
As			0 - 100
B	0 - 900	0 - 900					0 - 1,000
Ba		0 - 5,000
Bi			0 - 100
Ca	0 - 3,000	0 - 5,000		0 - 50	0 - 500	0 - 100	0 - 50	0 - 5
Cd		0 - 900
Ce			0 - 100
Co			0 - 100
Cr	0 - 900	0 - 900		0 - 50	0 - 500	0 - 100
Cu	0 - 900	0 - 900		0 - 50	0 - 500	0 - 100	0 - 50
Fe	0 - 900	0 - 900		0 - 50	0 - 500	0 - 100	0 - 50	0 - 5
In			0 - 100
K		0 - 900		0 - 50	0 - 500	0 - 100	0 - 10,000	0 - 5
Li		0 - 900		0 - 50	0 - 500	0 - 100		0 - 5
Mg		0 - 5,000		0 - 150	0 - 1,500	0 - 100	0 - 50	0 - 5
Mn		0 - 900		0 - 50	0 - 500	0 - 100
Mo	0 - 900	0 - 900					0 - 500
Na	0 - 3,000	0 - 5,000		0 - 50	0 - 500	0 - 100	0 - 10,000	0 - 5
Ni	0 - 900	0 - 900		0 - 50	0 - 500	0 - 100
P	0 - 3,000	0 - 5,000					0 - 2,500
Pb	0 - 900	0 - 900		0 - 50	0 - 500	0 - 100	0 - 50
Sb		0- 100
Si	0 - 900	0 - 900		0 - 50	0 - 500	0 - 100	0 - 500	0 - 5
Sn	0 - 900	0 - 900
Ti		0 - 900
V		0 - 900		0 - 50	0 - 500	0 - 100
W			0 - 100
Zn	0 - 3,000	0 - 5,000		0 - 50	0 - 500	0 - 100	0 - 50
Zr			0 - 100
