Static Universal Testing Systems
Static Universal Testing Systems
Static Universal Testing Systems
Static Universal Testing Systems

Static Universal Testing Systems

Testing machines for accurate, repeatable and reliable results of tensile, compression, flexure, peel, shear, tear or friction tests on a wide range of different materials for quality control, product development, research or process development.

w+b can provide single column tabletop or dual column floor standing models with different load capacities..

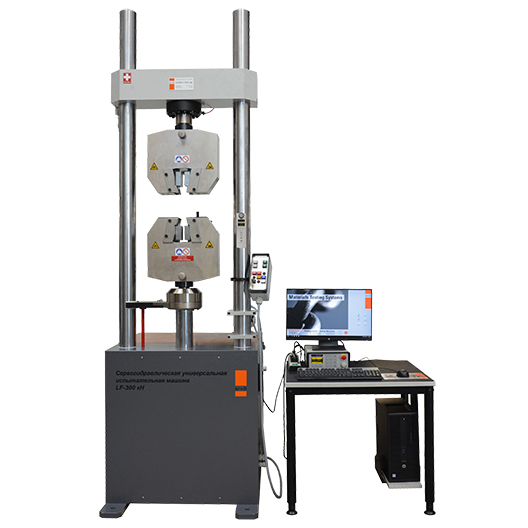

The LF & LFSV Series are compact and modular designed servohydraulic actuated test systems.

The actuator is integrated in the machine’s base, providing a reduced over-all machine height. They feature compact design is especially suitable for laboratories with reduced ceiling heights. These single work space machines allow carrying out tensile-, compression- or bending tests.

Accuracy according to ISO 7500-1 etc., class 0.5 with high resolution and synchronized measurement on all channels.

Enquiry

Key Features

  • ingle workspace-design provides high load frame stiffness and ergonomically working height
  • Series LF with manually clamped and movable upper crosshead
  • Series LFSV with hydraulic movable upper crosshead
  • Rigid machine frame construction provides superior axial and lateral stiffness and guarantees robust, durable and long-term operation
  • Double-acting (no plunger) actuator in Servo-Quality mounted in the machine base
  • Polished and hard chromium-plated columns
  • Leather bellows over a complete piston rod protect piston rod from dust, dirt and scale
  • Anti-rotation system for the actuator prevents the natural tendency of the actuator to rotate
  • Precision tension / compression rated strain gauge load cell mounted on upper crosshead
  • Optional alignment fixture can be mounted between crosshead and load cell
  • High resolution digital displacement transducer
  • Servovalve with manifold attached directly on acuator
  • Machine supplied with anti-shock pads below the machine to effectively reduce and isolate vibrations, noise, as well as elastic storage decoupling
  • Anchors for fixation on laboratories floor
  • Durable structured coating (or paint)
  • Bolts for machine lifting
  • The machine is free-standing on shock absorbers, requiring no special foundations
