TESTOMETRIC UTM X Series
TESTOMETRIC UTM X Series

TESTOMETRIC UTM X Series

Fully digital testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.

High resolution load cells with accuracies better than +/-0.5% down to 1/1000th of the load cell capacity.

Automatic recognition of load cells and extensometers, with instant calibration check facility.

800% overload capability of load cells without damage.

High efficiency pre-loaded self cleaning ballscrews for fast, quiet testing. Fitted with sealed for life lubricated end bearings.

Crosshead guidance system providing precise alignment and smooth running.

Precision crosshead control via digital AC servo drive and brushless servo motor giving maintenance free operation and 23-Bit positional control.

High speed data collection systems for up to 4 synchronous channels.

Enquiry

STANDARD MODELS

  • 1kN
  • 2.5kN
  • 3kN
  • 5kN
  • 10kN
  • 20kN
  • 25kN
  • 30kN
  • 50kN
  • 100kN

FLOOR STANDING MODELS

  • 100kN
  • 150kN
  • 300kN
  • 500kN
  • 600kN
  • 1000kN

BOX COMPRESSION

Small box compression Box compression

SPECIALS FRAMES MODELS

  • Dual & triple Systems
  • Long frame
  • Wide frame
  • Horizontal tester
  • Multi station

SPECIALS MODELS

  • Fibre & micro
  • Foam Seat Tester
  • Glass Tester
  • Large sheet Tester
  • Spring Tester

MADE TO MEASURE

6 I/O channels for additional devices such as extensometers, micrometers, calipers, balances etc.

High stiffness loading frames with solid specialised steel crossheads and rigid extruded support columns with T-slots for accessory mounting.

Overload, overtravel and impact protection.

Telescopic covers giving additional protection for ballscrews against dust and testing debris. Small footprint design, giving economy of bench and floor space.

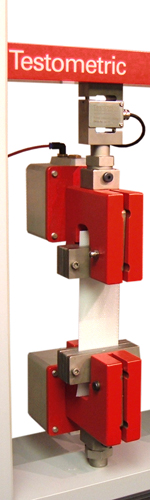

Extensive range of grips and fixtures for tension, compression, flexural, shear, peel and product testing etc.

A wide range of contacting and non-contacting extensometers is available including laser and video models.




STANDARD SPECIFICATION

Machine Capacity 5kN
Speed Range 0.00001 to 2000mm/min
Crosshead Travel (excluding grips) 1100mm
Distance Between Columns mm 320 (or 420mm with wide frame option)


BUILT FOR PRECISION

Force Measurement
Universally Calibrated, better than Grade 0.5 EN 7500-1, DIN 51221 ASTM E-4. AFNOR A03-501. Range 0.4% to 100% minimum. Automatic identification of load cell. Resolution 1 part in 500000. Electronic load cell protection.

Extension Measurement
Full frame length to a maximum resolution of 0.000001mm (selectable). Accuracy +/- 0.01mm. Absolute, relative and auxiliary modes in mm, inch and percent.

Speed Control
Class-leading low speed performance with speeds down to 0.00001mm/min. Drive system temperature and current protection.

Electronics System
Modular electronics system offers fast data transfer to the PC (up to 1000Hz) via high-speed Ethernet connection. Extensive input options allow the connection of a wide range of extensometers and accessories via simple plug-in interface modules.




OPTIONAL TOUCHSCREEN PANEL PC

When paired with the optional IPC3 industrial-grade Panel PC with touchscreen control, the machine becomes a robust standalone system without the need for an external PC or Laptop.
Using the latest Windows 10 operating system and running a full version of Testometric’s winTest software the system allows complete control of the test machine and provides storage and access to unlimited test methods and results. The included mounting arm which attaches to the machine column T-Slots is fully adjustable for height, reach and viewing angle allowing the user to find the most ergonomic working position.




SOFTWARE

All Testometric models are supplied with our comprehensive winTest Analysis software package. The product of many years of continuous development, winTest Analysis provides a flexible and intuitive software package to suit all types of material testing. With built-in test methods covering tensile, compression, flexural, peel, shear, tear, cyclic, creep and multi-stage tests. It includes a wide range of industry standard test methods and the facility to create and store an unlimited number of further test methods. There is automated storage of all test data and ease of export to other software packages such as word, excel, access and SPC systems for enhanced report generation.
