Powerful and Perfect for Multitasking

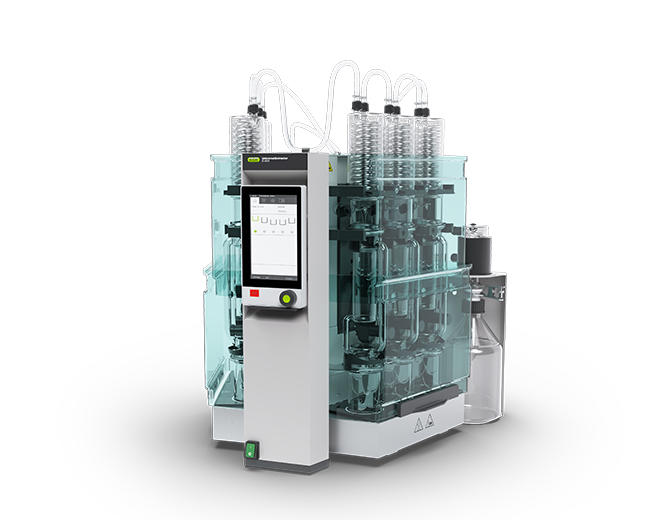

The UniversalExtractor E-800 is perfectly suited to any demanding extraction task. Six distinct extraction positions enable individual process control and simultaneous operation of different extraction methods. High-speed heaters combined with sophisticated process control allow for the fastest and most reproducible extraction processes.
When is it recommended to work with a recirculating chiller?
When you use a solvent like petroleum ether, a recirculating chiller should be implemented if the tap water is warmer than 15 °C. The temperature difference between the boiling point of the solvent and the cooling water temperature should be 20 - 25 °C in order to achieve a good condensation of the solvent in the condenser and to keep a good solvent recovery.
What is the use of the E-800 Large Sample Volume?
The basic idea of these glass parts is to offer our customer the possibility to work with larger amounts of sample to reach the required detection limit of the analytes. The main glass parts are expanded up to 60%.
Enquiry
The LSV glass assembly with the larger extraction chamber and beaker allows for the use of higher sample quantities needed to achieve the required detection limit of the analyte. The main glass parts are enlarged by 60 %.
The large condenser captures vapours efficiently and ensures highest solvent recovery (> 90 %), even with volatile solvents. Any emission of vapours is eliminated and allows for operation outside of the fume hood.
The entire extraction process is visible. The glass assemblies can be easily accessed and disassembled for cleaning and for decontamination in the oven (baking out at + 450 °C).
Monitors the solvent level in the beaker and prevents the beakers of running dry. For a safer process and best protection of heat-sensitive analytes.
The UniversalExtractor E-800 ECE is designed for economic and fast extraction of various samples for quality control. Six distinct extraction positions enable individual process control. The automated continuous extraction method ensures simple method selection and easy operation. High extraction efficiency with low variation combined with reduced solvent consumption guarantee cost savings.
The UniversalExtractor E-800 Standard / E-800 Standard LSV is perfectly suited to any demanding extraction task. Six distinct extraction positions enable individual process control and simultaneous operation of different extraction methods. The LSV(Large sample volume) version allows for the use of higher sample quantities needed to achieve the required detection limit of the analyte.
The UniversalExtractor E-800 Pro / E-800 Pro LSV is perfectly suited to any demanding extraction task. It supports up five different extraction methods, freely selectable by the extraction position. High-speed heaters and extraction chamber heaters combined with sophisticated process control allow for the fastest and most reproducible extraction processes. The LSV (Large sample volume) version allows for the use of higher sample quantities needed to achieve the required detection limit of the analyte.
| Dimension (W × D × H) | 638 × 595 × 613 mm |
| Weight net | 45 kg |
| Power consumption | 1780 W |
| Connection voltage | 200 – 240 V (+/- 10 %) |
| Frequency | 50 / 60 Hz |
| Solvent recovery | > 90 % |
| Water consumption | max. 1.7 L / min |
Persistent organic pollutants (POPs) / Total petroleum hydrocarbons (TPHs) / Pharmaceuticals, personal care products (PPCPs) / Volatile organic compounds (VOCs) / Explosives
Polymers: additives (plasticizers, stabilizers, etc.) / Contamination / Branching fraction Textiles: dyes / Residues: perfluorinated compounds (PFCs), phthalates, chlorinated paraffins, formaldehyde / Contaminants: pesticides, PCBs, PAHs
Crude or total fat, lipids (after hydrolysis) / Contaminants: food, food contact materials, processing / Residues: pesticides, veterinary drugs / Flavors and odors
Nutraceuticals / Herbal and dietary supplements / Plant toxins / Monitoring of active reagents
Crude fat, total fat
